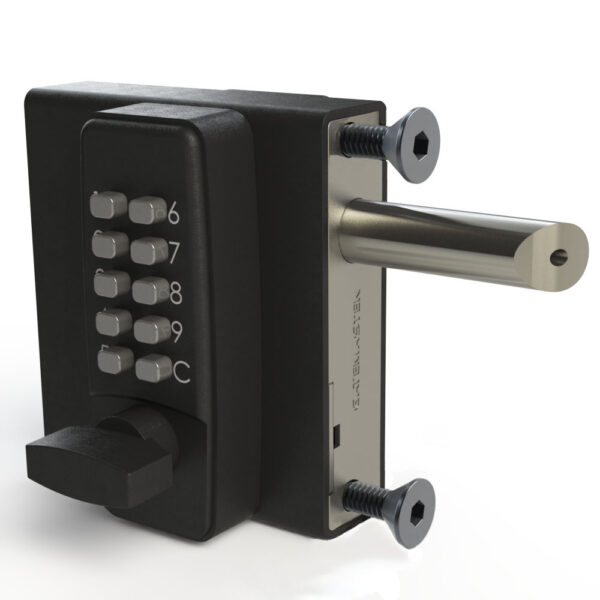

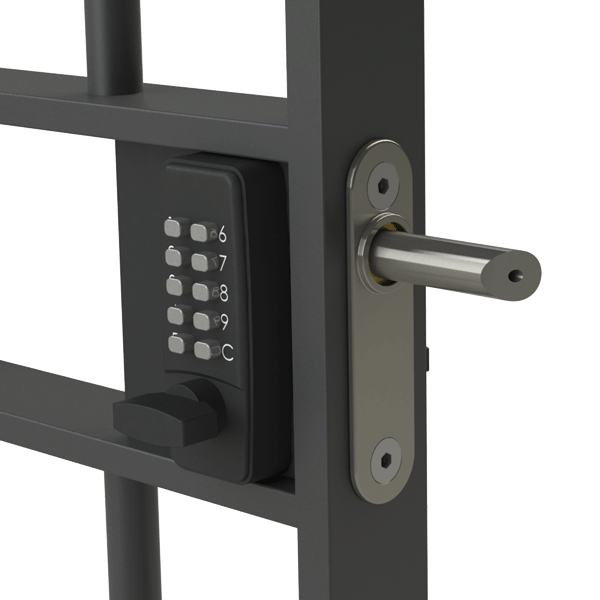

Gatemaster Digital Gatelock single sided


Product Code : DGLS
Product Download :

052 - DGLS Spec Sheet (551.2 KiB)



The Gatemaster Digital Gatelocks have been developed to meet the increased demand for keyless entry through gates.  This marine grade Digital Gatelock single sided (access via typing the code to enter, simple lever/handle action to exit) has many unique features.

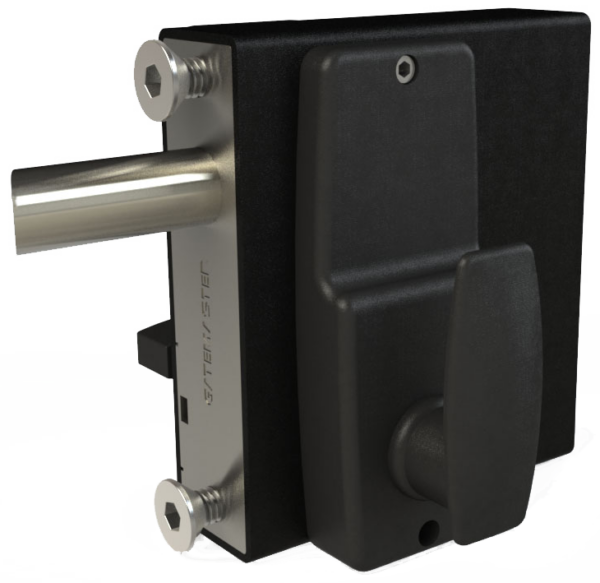

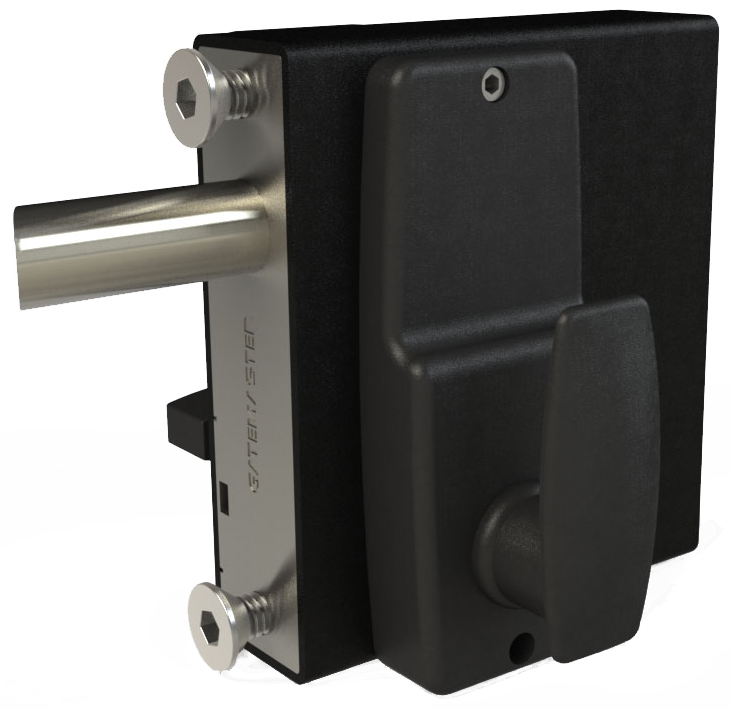

The latchbolt will automatically latch into the gate frame as the door closes. To then open the gate, enter the code and turn the handle. If you need to keep the gate unlocked for a short time, this lock has a hold-back function allowing you to do just that. Simply activate with the switch on the rear handle.

This lock does not need any power to operate. Its high quality digital keypads ensure a long lasting durability.

Finally, the lock can only be taken off the gate when the gate is open, which requires the code.

  • Auto-latching: closing the gate latches the latchbolt into the gate frame
  • Marine grade keypads ensure long lasting durability (salt spray tested for 1000 hours)
  • No power needed
  • Latchbolt moves 20mm
  • Brushed finish stainless steel bolt support plate with brass bearing.  Reduces friction, wear and increases product life.  Designed for heavy use gates.
  • Strike plate included
  • DGLS01L – For left handed gates, with a 10 – 30mm box section
  • DGLS01R – For right handed gates, with a 10 – 30mm box section
  • DGLS02L – For left handed gates, with a 40 – 60mm box section
  • DGLS02R – For right handed gates, with a 40 – 60mm box section

Not sure which handing to get? Read our helpful guide here to find out in 3 easy steps.


First of all, download the product’s spec sheet above for the complete step-by-step (see: Product Download).

Additional information

Weight 100 g
