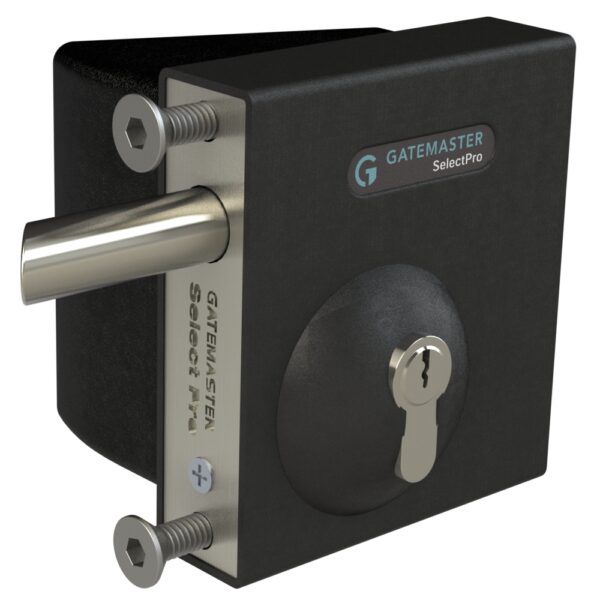

Select Pro Quick exit gate lock key access


Product Code : SBQEKL
Product Download :

173 - SBQE Spec Sheet (644.5 KiB)


This Gatemaster quick exit gate lock design allows for rapid exit through gates.  Designed specifically for metal gates, the unit is simple to install yet robust.  The unit will automatically latch shut when the gate is closed.

  • Easy to fit to the gate, simply drill 3 holes in the gate frame
  • Also available with a digital keypad entry from the outside
  • Available as either a left or right hand lock
  • 16mm one piece machined stainless steel latchbolt
  • Latchbolt moves 20mm
  • Security shroud available to prevent access to the pad from the outside (order separately)
  • SBQEKLL01 – To fit 10-30mm gate frames, left hand
  • SBQEKLR01 – To fit 10-30mm gate frames, right hand
  • SBQEKLL02 – To fit 40-60mm gate frames, left hand
  • SBQEKLR02 – To fit 40-60mm gate frames, right hand

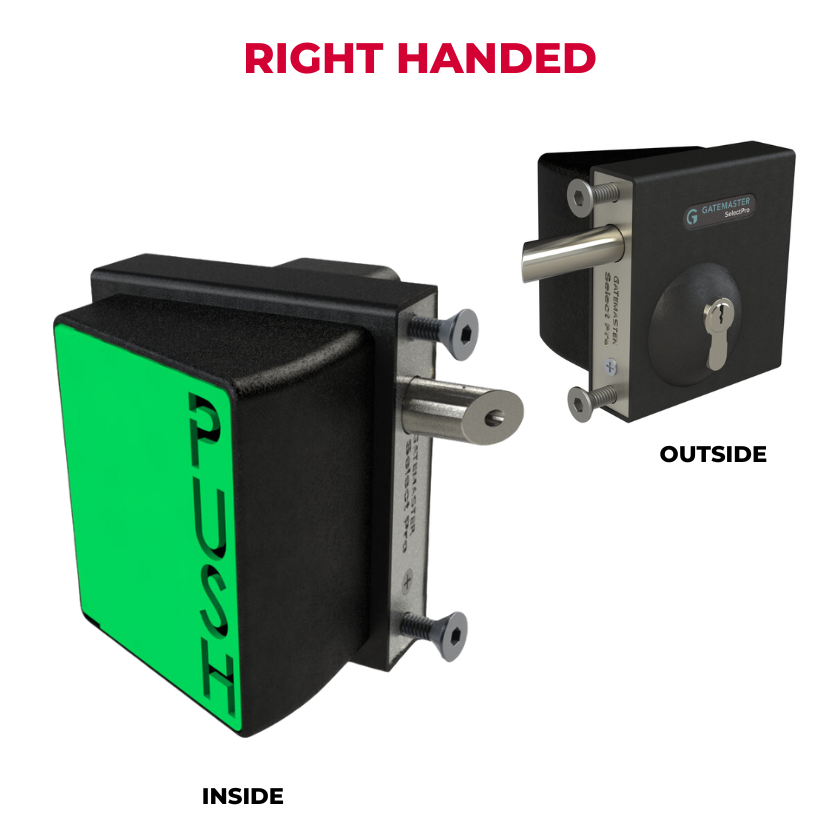

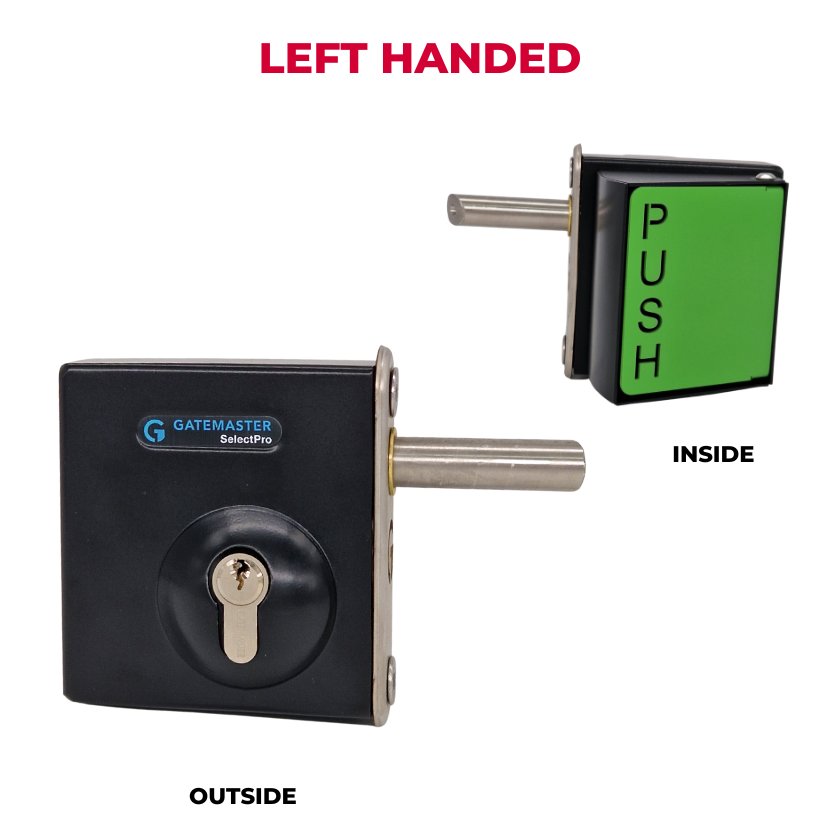

Not sure which handing to get? Read our helpful guide here to find out in 3 easy steps.

Diagram of working out lock handing. Top diagram: visual of left-handed gate with hinges on the left. Bottom: Right handed gate with hinges on the right


Download the spec sheet above (see: Product Download).

Additional information

Weight 350 g
