Gatemaster Autolocking Dropbolt


Product Code : ADB
Product Download :

089 - ADB And ADBS Spec Sheet (299.5 KiB)

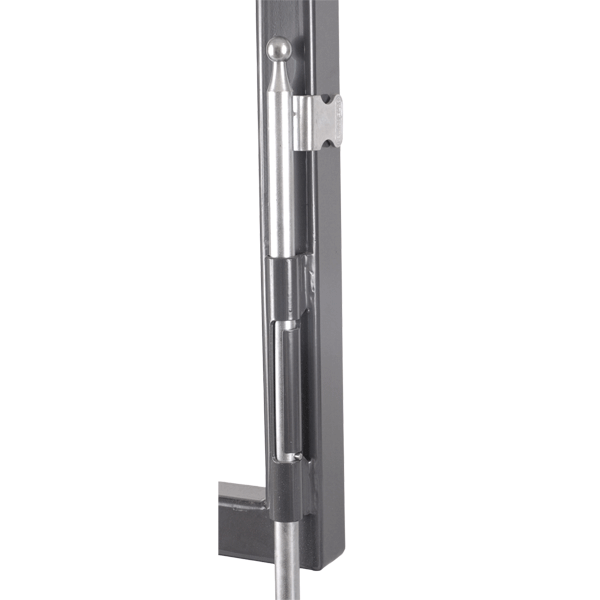

This is the Gatemaster Autolocking Dropbolt for double gates, available in two options; weld on or screw fixed. In use, the dropbolt is lowered and rotated so that the lifting plate folds across the edge of the first gate. The dropbolt is consequently locked in position. As a result, closing the second gate prevents the dropbolt being unlocked. The second gate can now be locked to the first gate with a standard gate lock. The gates can therefore not be spread apart because the dropbolt is locked in position.

  • Made of solid steel
  • Ingenious design prevents the dropbolt to be lifted once both gates are closed

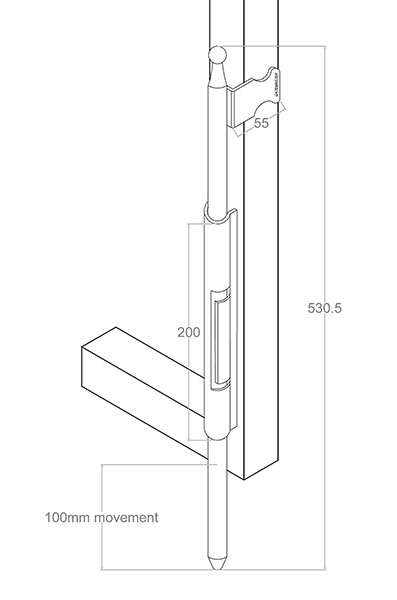

  • 19mm diameter dropbolt and moves 100mm
  • ADB – Weld on

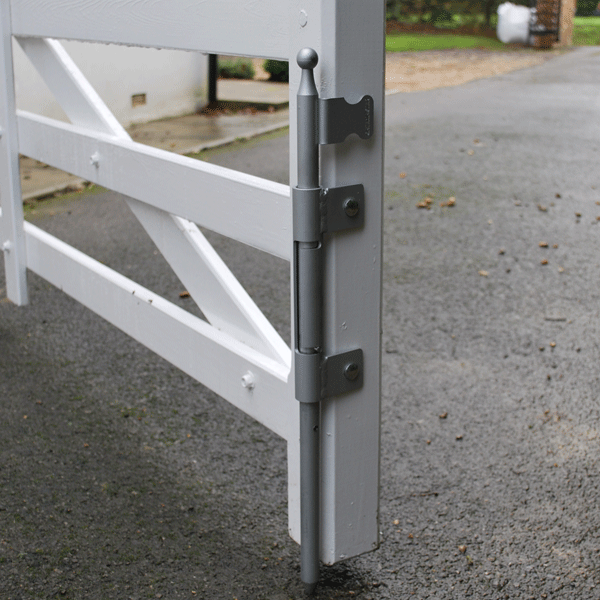

  • ADBS – Screw fixed

First of all, download the product’s spec sheet above for the complete step-by-step (see: Product Download).

Additional information

Weight 100 g
