Extension kit for surface-fixed Superlock


Product Code : BDGWE140


This extension kit works for our two surface-fixed Superlocks. Use this kit if you have a wooden gate that is thicker than 75mm.

The BDGWE140 will allow you to install the single-sided or double-sided surface-fixed Superlocks on gates of up to 140mm thick. The table below highlights when you will need the kit.

Gate frame thickness Fixings needed
20mm – 45mm Standard fixings (included w/ lock)
45mm – 75mm Standard screws + M5 extenders (all included w/ lock)
75mm – 120mm Screws from BDGWE140 kit
120mm – 140mm Screws from BDGWE140 kit + M5 extenders

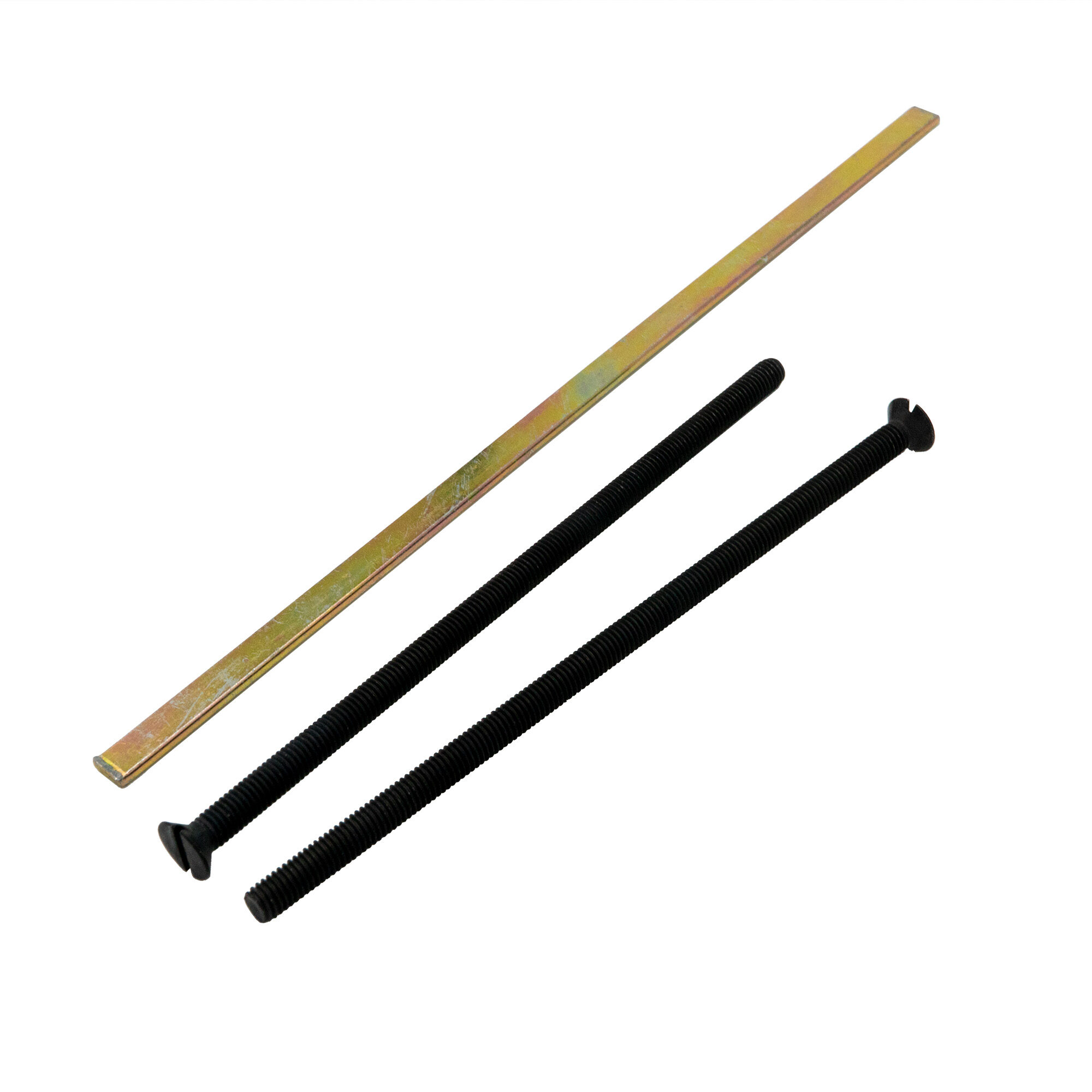

This extension kit includes:

  • 120mm screws x2 (use with extension screws supplied with lock for gates above 120mm)
  • Longer spindle x1

To install the locks with the extension kit, you simply follow the instructions and use the longer fixings instead of the standard ones supplied.

Please note: it may be necessary to cut the screws and spindle down with an angle grinder or hacksaw to achieve the exactly desired length.
