Description

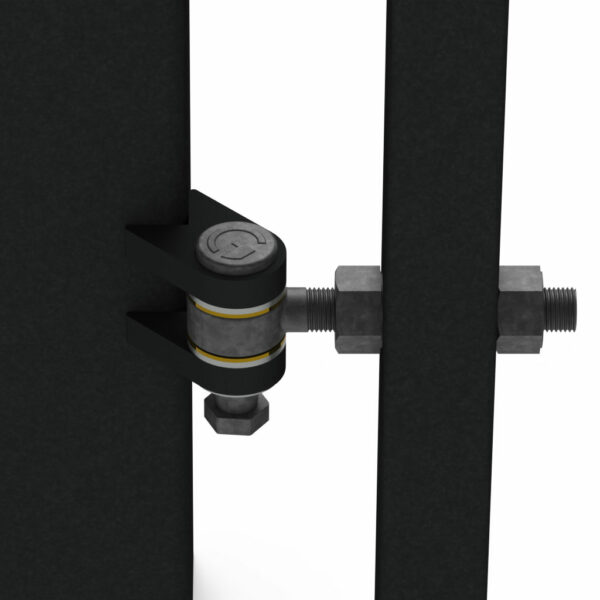

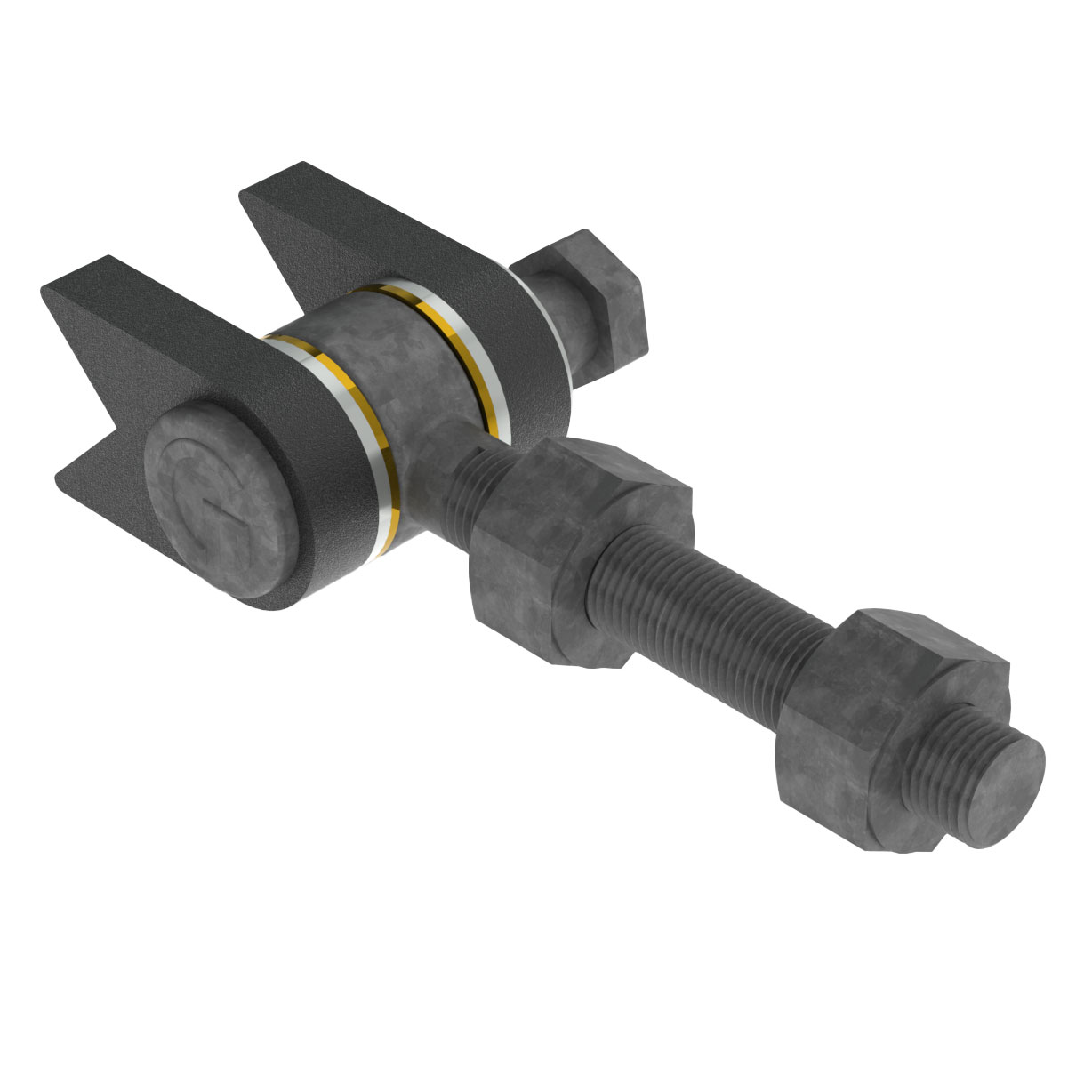

When you need a gate hinge that delivers strength, reliability, and long-lasting performance, the Gatemaster Superhinge with Corner Lugs is the perfect solution. Designed for metal gates that demand exceptional durability, this version of the Superhinge features integrated corner lugs, allowing it to be welded neatly onto the corner edge of a gate post for a strong, secure installation.
Built for demanding environments, the Superhinge is ideal for industrial gates, high-traffic entrances, and automated systems where standard hinges fall short. With its robust construction and precision engineering, it’s made to perform flawlessly under constant, heavy use.
The hinge incorporates a high-quality brass bearing that reduces friction, providing smooth, consistent movement whether your gate is manual or automated. Once installed, it requires very little upkeep—just a quick re-grease every six months to maintain peak performance.
Why Choose the Gatemaster Superhinge with Corner Lugs?
-
Exceptional Durability – Tested to withstand over 500,000 openings with no wear—equivalent to decades of daily use.
-
Handles the Heaviest Gates – Supports loads of up to 900kg depending on the size selected.
-
Smooth & Reliable Operation – Brass bearing design ensures low-friction movement, perfect for automated systems.
-
Corner-Lug Installation – Specifically designed to weld securely onto the corner edge of gate posts.
-
Minimal Maintenance – Built for long service life with only occasional lubrication needed.

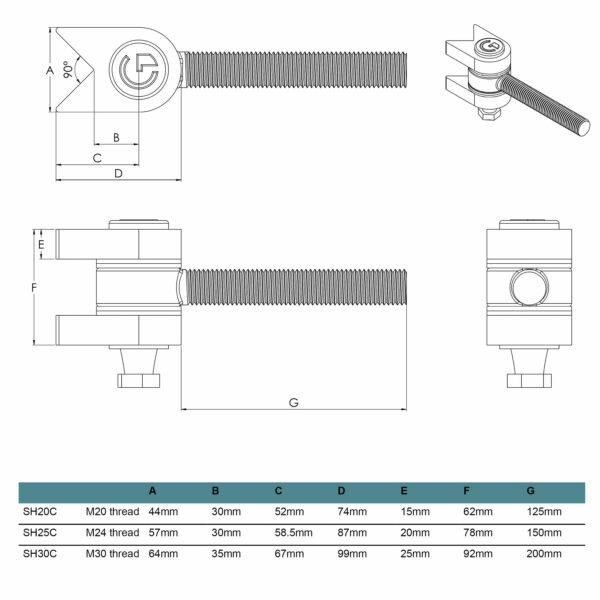

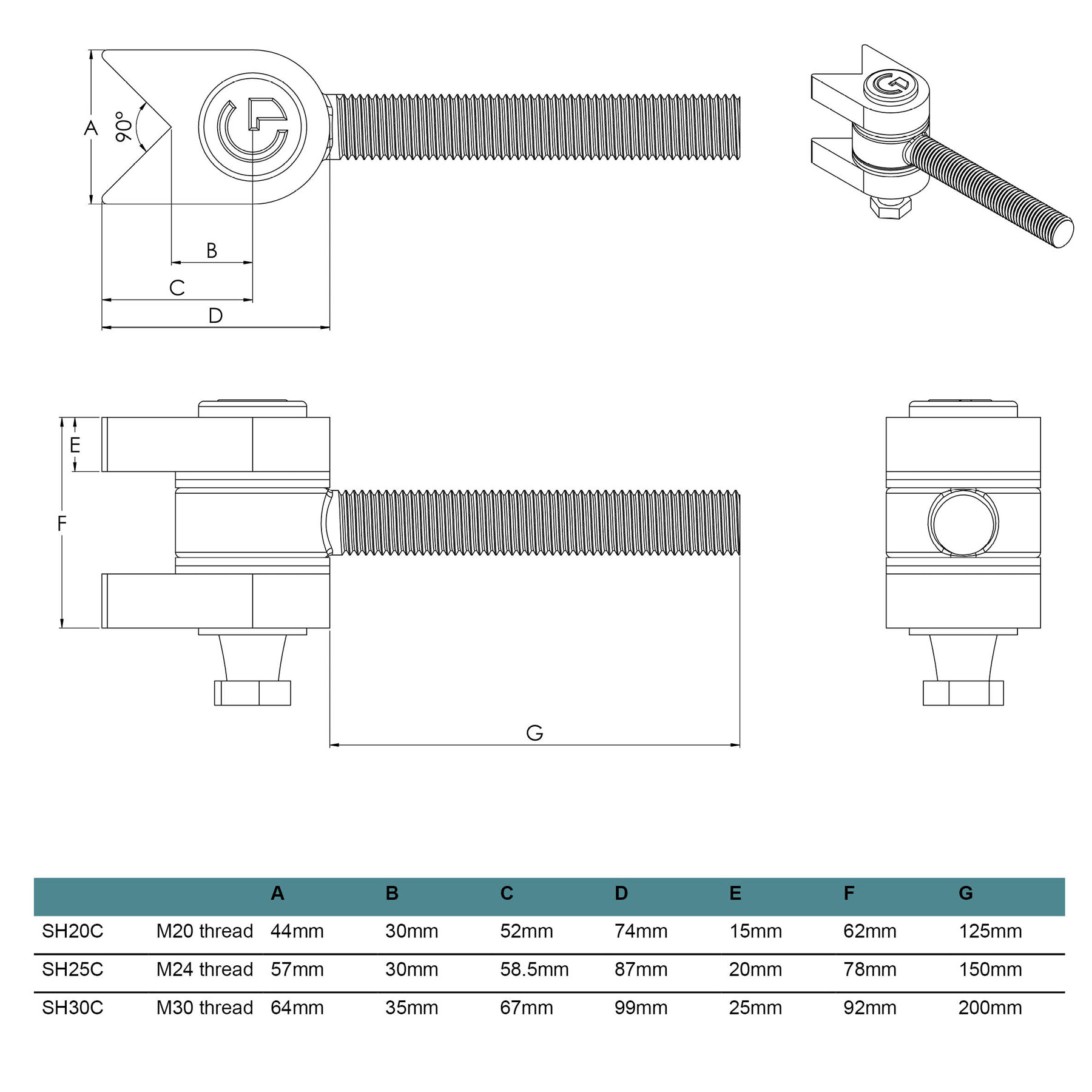

Available Sizes and Load Capacities
There are 4 sizes available, weight guidance on the hinges assumes a relationship between the width and height of the gate of 1 to 1.6.
- SH16C – M16 thread size – 150kg per pair of hinges
- SH20C – M20 thread size – 300kg per pair of hinges
- SH25C – M24 thread size – 450kg per pair of hinges
- SH30C – M30 thread size – 900kg per pair of hinges
Please note the products are sold individually, not in pairs.
Manufacturer Guarantee
Every Gatemaster Superhinge is backed by our superior wear resistance guarantee. If your hinge shows excessive wear under proper maintenance, we’ll replace it free of charge. To keep the guarantee valid, ensure hinges are re-greased every six months.
Installation
Simply weld the brackets onto the post and drill a hole in the gate for the adjustable bolt.
If you need a heavy-duty gate hinge that combines strength, low maintenance, and smooth performance, the Gatemaster Superhinge with Corner Lugs is designed to deliver—day after day, year after year.
