Superlock Digital Single Sided Lock with Lever Handles


Product Code : BDGSL
Product Download :

BDGSL Information Sheet 2024 (246.1 KiB)


The slim Superlock Digital Single-Sided lock with Lever Handles is perfect for fitting to box section metal gate frames.  Simply bolt the lock onto the gate frame and adjust the latch bolt to suit your gate. This single-sided lock has all the features of the BDGS but with sleek, smooth, easy-to-grip lever handles.

This innovative lock combines security features with sleek design, offering a seamless blend of functionality and aesthetics.

  • Return-to-door lever handles that are easier to operate particularly for people with mobility issues or for those who find gripping and turning difficult
  • Convenient – Digital access on one side and a rear handle makes accessing the gate convenient
  • Easy to fit – Slim 70mm case designed to fit a wide range of gate applications
  • Secure – Stainless steel latch bolt which latches 15mm into the gate post
  • Adaptable – Latch bolt can be adjusted for different box section size
  • Reliable – This digital single sided lock is supplied with a guide plate with brass bearing to ensure the lock lasts!
  • Available in two sizes – BDGSL1030 for 10 to 30mm flat bar or box section gate frames and BDGSL4060 for 40 to 60mm gate frames
  • Use in conjunction with the Superlock keep to increase security and product life

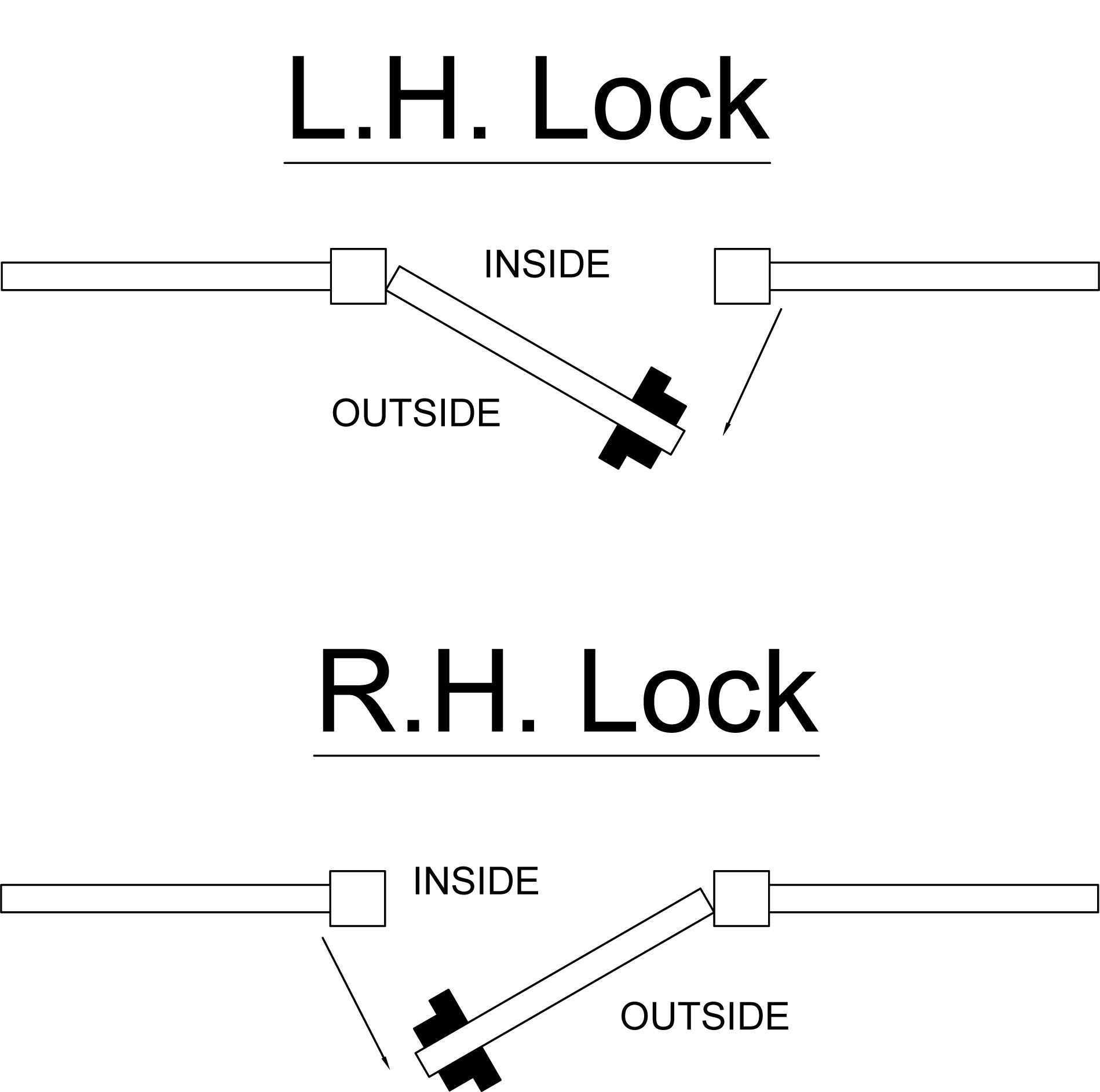

  • Available in both left and right hand versions – check the handing by looking at what side the hinges are on, quick guide to handing
  • Gate post strike plate supplied for smooth latching action
    • BDGSL1030L – For 10-30mm gate frames, left hand
    • BDGSL1030R – For 10-30mm gate frames, right hand
    • BDGSL4060L – For 40-60mm gate frames, left hand
    • BDGSL4060R – For 40-60mm gate frames, right hand

The new Lever Handle Superlock is available as either double-sided or single-sided. The double-sided BDGL features a digital keypad on both sides so a gate can be secured from both sides, preventing anyone from reaching around the gate to unlock it from the outside. This version is adjustable to suit either a left or right-handed gate.

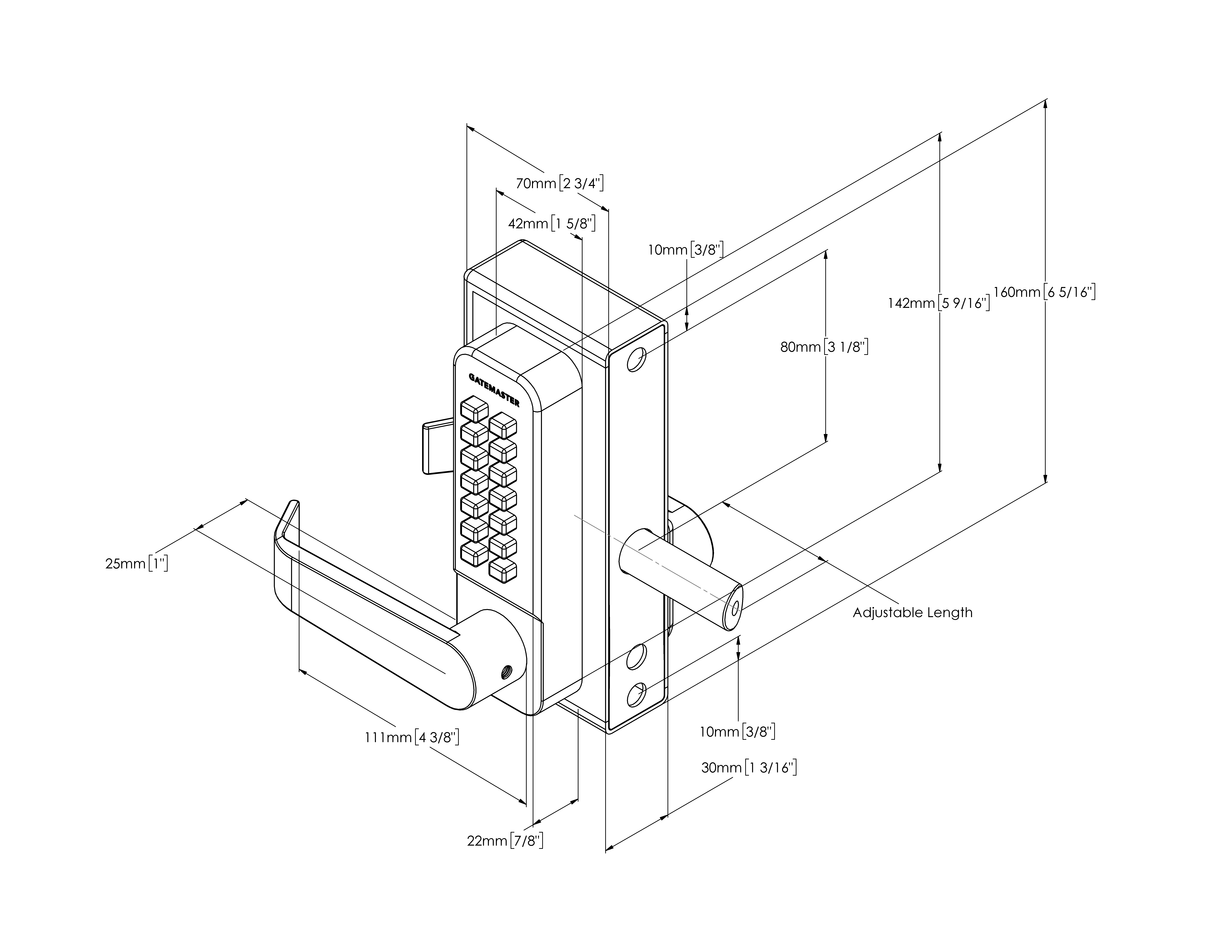

To find the correct size of your lock, you have to measure the thickness of the gate frame. View the diagram in the pictures above to see what to measure.


You can install the BDGSL just like the other Superlocks. If you have any doubts, check out this video.

Download the spec sheet above (See: Product Download).
