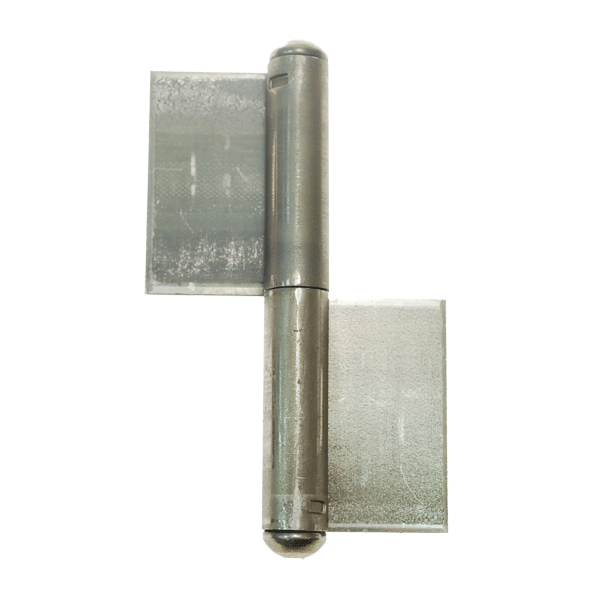

2 part pressed flag hinge with fixed pin

£3.52£10.74

Clear
Product Code : FH
Category:

Description

This is a 2 part pressed flag hinge with fixed pin. Available in left hand and right hand versions.

KEY FEATURES
  • Dimensions are as follow; (Length x overall width x pin diameter x material thickness)
    FH60L – 70 x 54 x 8 x 2.6mm LH (75kg capacity per hinge)
    FH60R – 70 x 54 x 8 x 2.6mm RH (75kg capacity per hinge)
    FH100L – 114 x 80 x 10 x 3mm LH (140kg capacity per hinge)
    FH100R – 114 x 80 x 10 x 3mm RH (140kg capacity per hinge)
    FH140L – 155 x 92 x 12 x 3.5mm LH (210kg capacity per hinge)
    FH140R – 155 x 92 x 12 x 3.5mm RH (210kg capacity per hinge)
    FH160L – 175 x 92 x 12 x 3.5mm LH (240kg capacity per hinge)
    FH160R – 175 x 92 x 12 x 3.5mm RH (240kg capacity per hinge)

Diagram of working out lock handing. Top diagram: visual of left-handed gate with hinges on the left. Bottom: Right handed gate with hinges on the right

PRODUCT OPTIONS
  • FH – 2 part pressed flag hinge with fixed pin

Additional information

Weight 100 g
Size

, , , , , , ,
