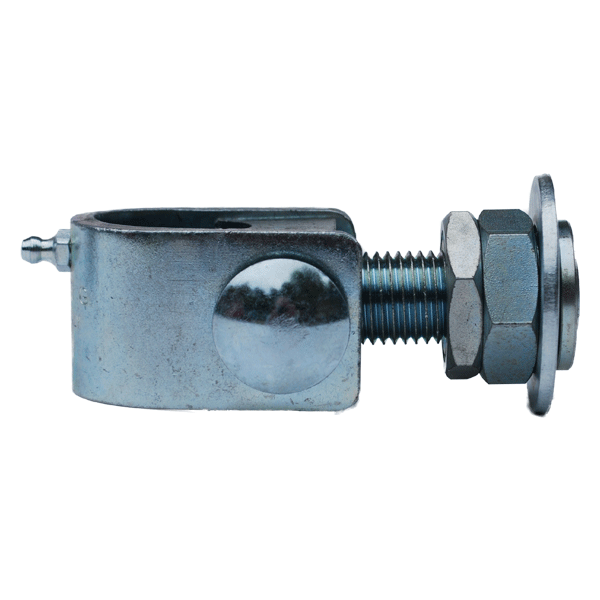

This is a round clamp hinge with adjustable nut. To adjust it; first support the gate, slacken off the 2 lock nuts and lock together. Then rotate to adjust the gate and then clamp back against the heavy washer.
- Comes in various sizes; (Thread diameter x overall length x thread length x hole diameter)
M18 x 103 x 46 x 30mm (50kg capacity per hinge)
M22 x 116 x 52 x 35mm (80kg capacity per hinge)
M30 x 136 x 65 x 40mm (120kg capacity per hinge)
- RC18 – Round clamp hinge with adjustable nut, M18 thread
- RC22 – Round clamp hinge with adjustable nut, M22 thread
- RC27 – Round clamp hinge with adjustable nut, M30 thread
