This is a simple top pivot with ball bearing. It has low friction and horizontal adjustment.
Stub pivot welded to the top of the gate – plate and bearing assembly welded to the post.
- Low friction
- Horizontal adjustment
- Various sizes;
50mm diameter – 200kg capacity
65mm diameter – 300kg capacity

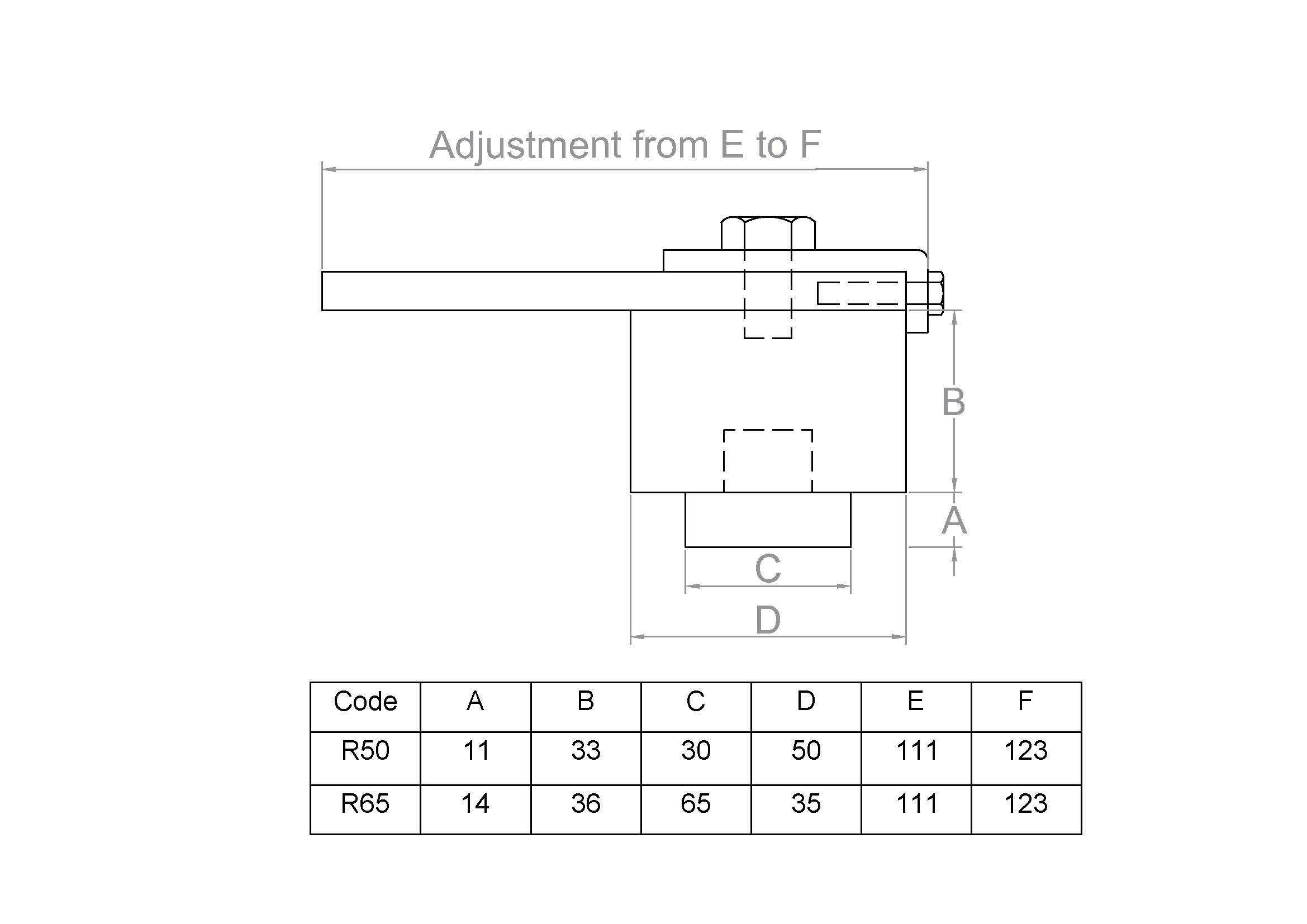

- R50 – Top pivot with ball bearing, 50mm diameter
- R65 – Top pivot with ball bearing, 65mm diameter
